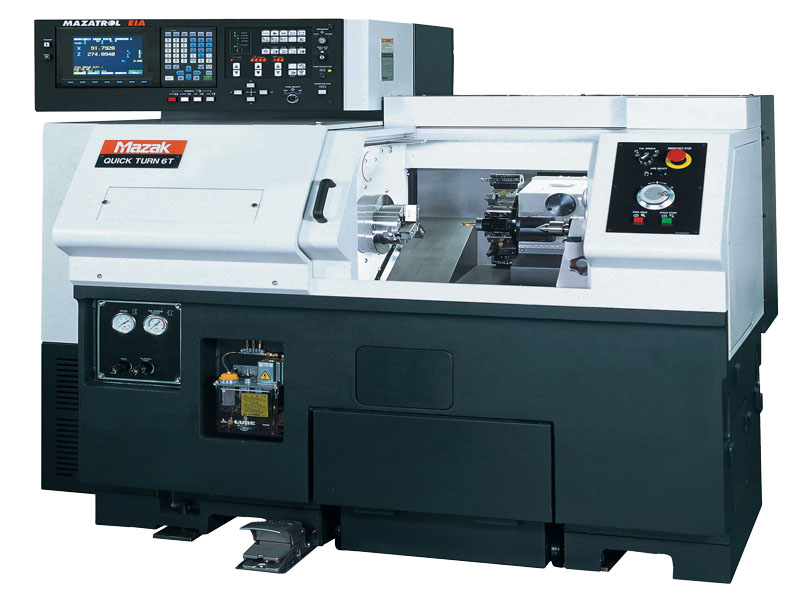

QUICK TURN 6G

MACHINE DESCRIPTION:

The QUICK TURN 6G CNC Chucker Turning Center features a compact design for small workpieces. As a chucker configuration, the machine offers the versatility of either three-jaw or collet chucks for high efficiency turning capability.

The Gang Plate style tooling systems eliminates turret indexing to keep machining cycles to a minimum. Optional Gantry Loader (GL) systems provide the ability for un attended operation to maximize spindle utilization and reduce cost per piece ratios.

MACHINE CHARACTERISTICS:

  • High efficiency turning spindle
  • Collet and three-jaw chuck styles
  • Gang turret
  • Compact machine footprint

机床参数

Specification 中心距 -
加工能力 最大加工直径 95 mm / 3.740 in
最大棒材加工能力 (受卡盘影响) 32 mm / 1.3 in
最大加工长度 60 mm / 2.360 in
主轴 卡盘尺寸 5 in
最大转速 7000 rpm
电机功率 (30 分钟额定) 6 kw / 7.5 hp
上刀塔 刀具数量 6
进给轴 行程(X轴) 300 mm / 11.81 in
行程(Z轴) 240 mm / 9.45 in
