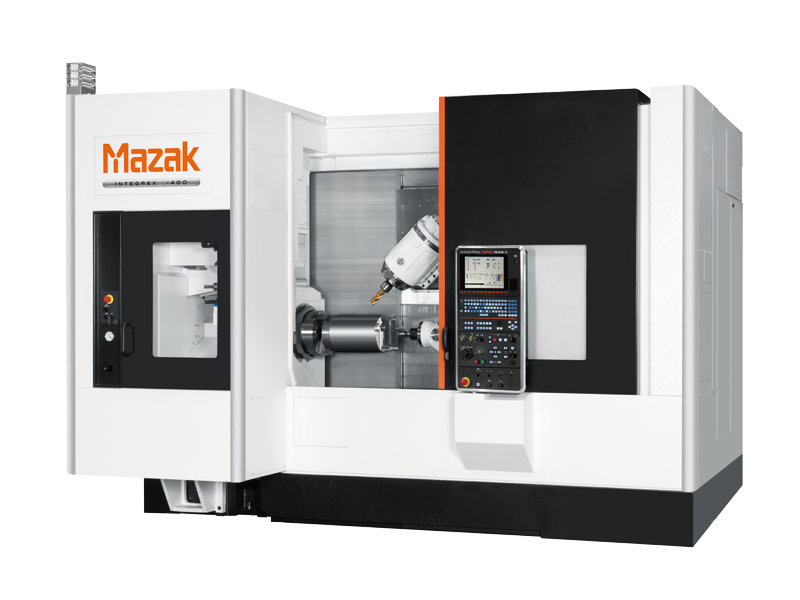

INTEGREX j-400


MACHINE DESCRIPTION:

Designed to provide maximum value, the INTEGREX j-400 provides an option for increasing processing flexibility while offering a cost-effective alternative for those seeking accurate turning, and angular milling capability. Featuring the most powerful turning spindle motor available in this series, in combination with a high speed mill spindle, automatic tool changing, and large machining area – the j-series fills the demand for a robust, multi-tasking machine to deliver on a wide variety of production requirements.

MACHINE CHARACTERISTICS:

  • Versatile Mill Spindle indexing (B-axis)-30 ~ 190 degrees
  • High-speed, high-torque milling spindle
  • Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
  • Large true Y-axis design
  • Large tool magazines to reduce setup time
  • Programmable NC tailstock

机床参数

Specification 中心距 - 650U in
加工能力 最大回转直径 640 mm / 25.20 in
最大加工直径 500 mm / 19.690 in
最大棒材加工能力 (受卡盘影响) 102 mm / 4.0 in
最大加工长度 629 mm / 24.760 in
主轴 卡盘尺寸 12 in
最大转速 3300 rpm
电机功率 (30 分钟额定) 22 kw / 30.0 hp
铣削主轴 B轴行程 220°
刀库容量 20
最大转速 12000 rpm
电机功率 (20 ED Rating) 22 kw / 30 hp
进给轴 行程(X轴) 615 mm / 24.21 in
行程(Y轴) 250 mm / 9.84 in
行程(Z轴) 695 mm / 27.36 in
行程(W轴) 614 mm / 24.17 in
