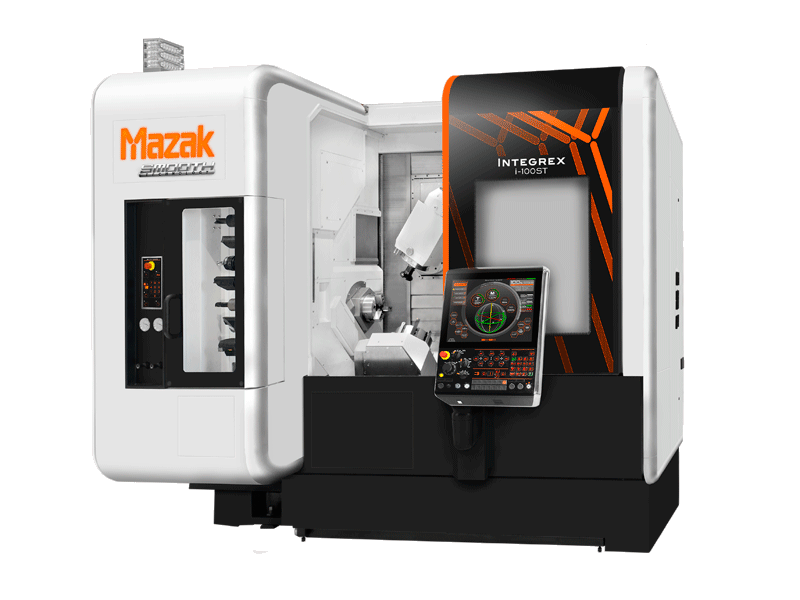

INTEGREX i-100S

MACHINE DESCRIPTION:

INTEGREX i-100S advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for smaller complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. This machine configuration features second turning spindle (S) for Done-In-One machining and works to minimize fixtures, tools, handling and non-cut time.

Additionally, the machine brings dramatic reductions in lead-time, and improves part accuracy through the elimination of multiple setups. With full 5-axis capability, the machine easily processes fully prismatic parts from solid or castings (chucked or bar fed work), round parts, or highly contoured sculptured parts.

MACHINE CHARACTERISTICS:

  • 'Milling spindle travel -30 ~ 210 degrees (.0001 degree min index angle)
  • Optional 20k RPM (7.5 HP) milling spindle available
  • Productive second turning spindle for Done-In-One part processing
  • Full C-axis contouring (.0001 degree minimum index)
  • Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
  • 36-tool ATC standard ( HSK A63 ) – 72 or 110 tool options available

机床参数

Specification 中心距 -
加工能力 最大回转直径 530 mm / 20.87 in
最大加工直径 500 mm / 19.690 in
最大棒材加工能力 (受卡盘影响) 51 mm / 2.0 in
最大加工长度 854 mm / 33.620 in
主轴 卡盘尺寸 6 in
最大转速 6000 rpm
电机功率 (30 分钟额定) 11 kw / 15.0 hp
第二主轴 卡盘尺寸 6 in
最大转速 6000 rpm
电机功率 (30 分钟额定) 11 kw / 15.0 hp
铣削主轴 B轴行程 240°
刀库容量 36
最大转速 12000 rpm
电机功率 (20 ED Rating) 8 kw / 10 hp
进给轴 行程(X轴) 450 mm / 17.72 in
行程(Y轴) 210 mm / 8.27 in
行程(Z轴) 904 mm / 35.59 in
行程(W轴) 903 mm / 35.55 in
