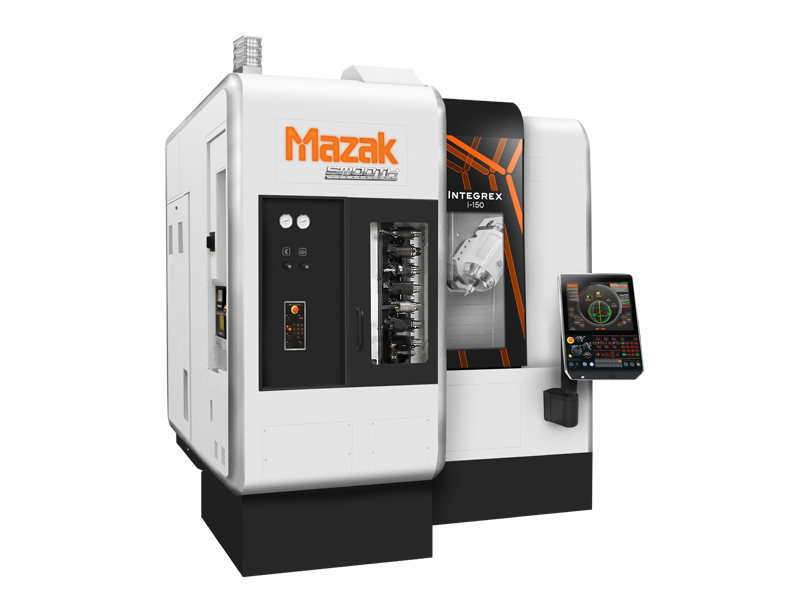

INTEGREX i-150

MACHINE DESCRIPTION:

INTEGREX i-150 advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for smaller complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. A programmable, workpiece handling device allows milling operations to the back face. This machine configuration works to minimize fixtures, tools, handling and non-cut time.

Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups. With full 5-axis machining capability, the machine easily processes fully prismatic parts from solid or castings (chucked or bar fed), round parts, or highly contoured parts.

MACHINE CHARACTERISTICS:

  • Milling spindle travel: -30 ~ 210 degrees (.0001 degree min index angle)
  • Optional 20k RPM (7.5 HP) milling spindle available
  • Full C-axis contouring (.0001 degree minimum index)
  • Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
  • 36-tool ATC standard ( HSK A63 ) – 72 tool option available
  • Programmable workpiece handling device (standard) – tailstock attachment optional

机床参数

Specification 中心距 -
加工能力 最大回转直径 400 mm / 15.75 in
最大加工直径 400 mm / 15.750 in
最大棒材加工能力 (受卡盘影响) 65 mm / 2.6 in
最大加工长度 385 mm / 15.160 in
主轴 卡盘尺寸 6 in
最大转速 5000 rpm
电机功率 (30 分钟额定) 11 kw / 15.0 hp
铣削主轴 B轴行程 200°
刀库容量 36
最大转速 12000 rpm
电机功率 (20 ED Rating) 8 kw / 10 hp
进给轴 行程(X轴) 370 mm / 14.57 in
行程(Y轴) 200 mm / 7.87 in
行程(Z轴) 435 mm / 17.13 in
行程(W轴) 300 mm / 11.81 in
