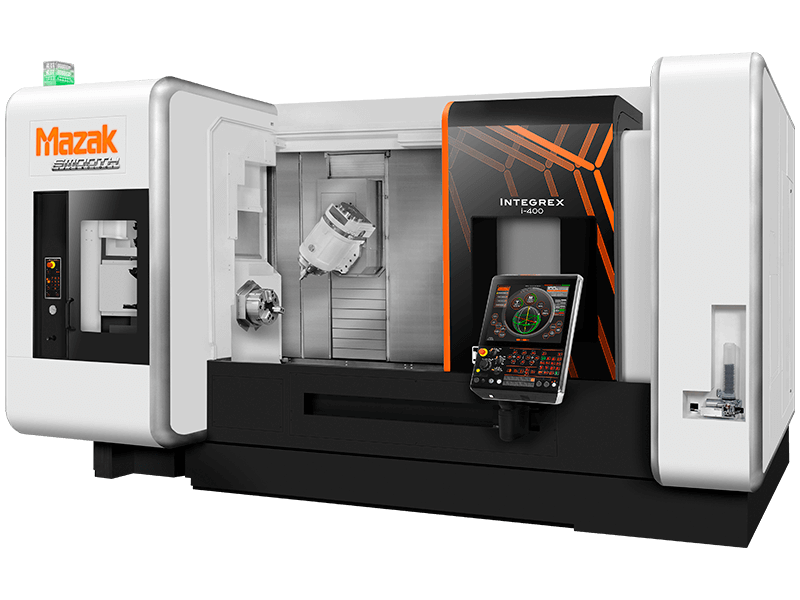

INTEGREX i-400

MACHINE DESCRIPTION:

INTEGREX i-400 advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for medium to large complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. This machine configuration works to minimize fixtures, tools, handling and non-cut time.

Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups. With full 5-axis machining capability, the machine easily processes fully prismatic parts from solid or castings (chucked or bar fed), round parts, or highly contoured parts.

MACHINE CHARACTERISTICS:

  • Milling spindle travel -30 ~ 210 degrees (.0001 degree min index angle)
  • Optional 20k RPM (15 HP) milling spindle available
  • Programmable NC tailstock
  • Full C-axis contouring (.0001 degree minimum index)
  • Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
  • 36-tool ATC standard ( HSK A63 ) – 72 or 110 tool options available
  • Multiple bed lengths available: 40”, 60”

机床参数

Specification 中心距 -1000U in 中心距 -1500U in 中心距 -2500U in
加工能力 最大回转直径 658 mm /25.91 in 658 mm /25.91 in 658 mm /25.91 in
最大加工直径 658 mm /25.910 in 658 mm /25.910 in 658 mm /25.910 in
最大棒材加工能力 (受卡盘影响) 102 mm /4.0 in 102 mm /4.0 in 102 mm /4.0 in
最大加工长度 1011 mm /39.800 in 1519 mm /59.800 in 1519 mm /59.800 in
主轴 卡盘尺寸 12 in 12 in 12 in
最大转速 3300 rpm 3300 rpm 3300 rpm
电机功率 (30 分钟额定) 30 kw /40.0 hp 30 kw /40.0 hp 30 kw /40.0 hp
铣削主轴 B轴行程 240° 240° 240°
刀库容量 36 36 rpm 36 rpm
最大转速 12000 rpm 12000 rpm 12000 rpm
电机功率 (20 ED Rating) 22 kw / 30hp 22 kw / 30hp 22 kw / 30hp
进给轴 行程(X轴) 615 mm /24.21 in 615 mm /24.21 in 615 mm /24.21 in
行程(Y轴) 260 mm /10.24 in 260 mm /10.24 in 260 mm /10.24 in
行程(Z轴) 1077 mm /42.40 in 1585 mm /62.40 in 2563 mm /100.91 in
