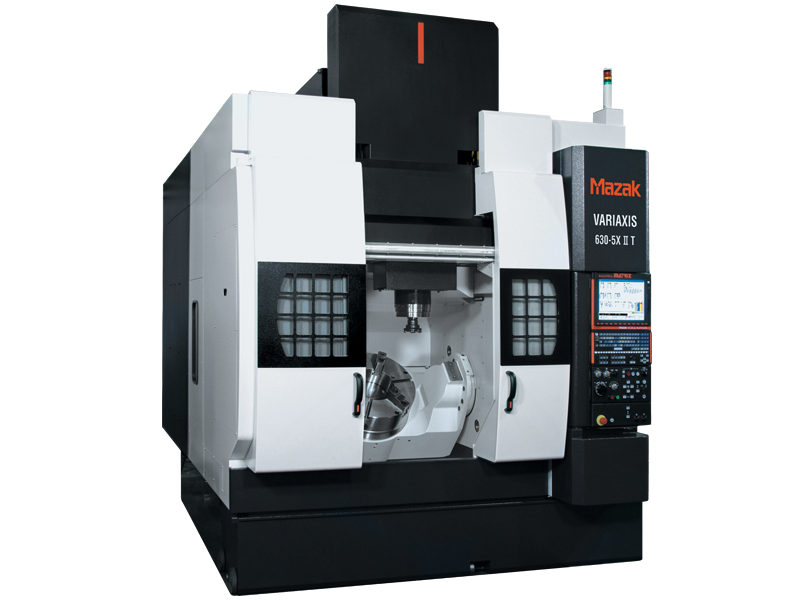

VARIAXIS 630-5X II T

MACHINE DESCRIPTION:

The VARIAXIS 630-5X II T 5-Axis Vertical Machining Centers feature unique highly rigid, built-in tilting rotary table with (T) turning capability in both the horizontal and vertical orientations for Multi-Tasking operations. The machine allows for workpieces with complex contours and features to be finished in single machine setups. Full 5-axis, simultaneously controlled machining with the machines is ideal for aerospace components as well as prismatic parts in steel and aluminum.

For greater productivity, machines are available with a 2-pallet changer system. Or, they can be paired with a Palletech system to form powerful automated cells.

MACHINE CHARACTERISTICS:

  • Simultaneous 5-axis control
  • Table tilts up to 150° (A-axis)
  • Table rotates up to 360° (C-axis)
  • Turning spindle
  • Minimal thermal distortion – cooled ball screws and spindle
  • Mazatrol Matrix CNC control

机床参数

Specification 中心距 -
加工能力 最大回转直径 730 mm / 28.74 in
最大加工直径 730 mm / 28.740 in
最大加工长度 500 mm / 19.690 in
车削主轴 卡盘尺寸 515 mm / 21 in
最大转速 1100 rpm
电机功率 (30 分钟额定) 19 kw / 24.8 hp
铣削主轴 刀库容量 30
最大转速 18000 rpm
电机功率 (30 分钟额定) 30 kw / 40.0 hp
进给轴 行程(X轴) 630 mm / 24.80 in
行程(Y轴) 765 mm / 30.12 in
行程(Z轴) 600 mm / 23.62 in
